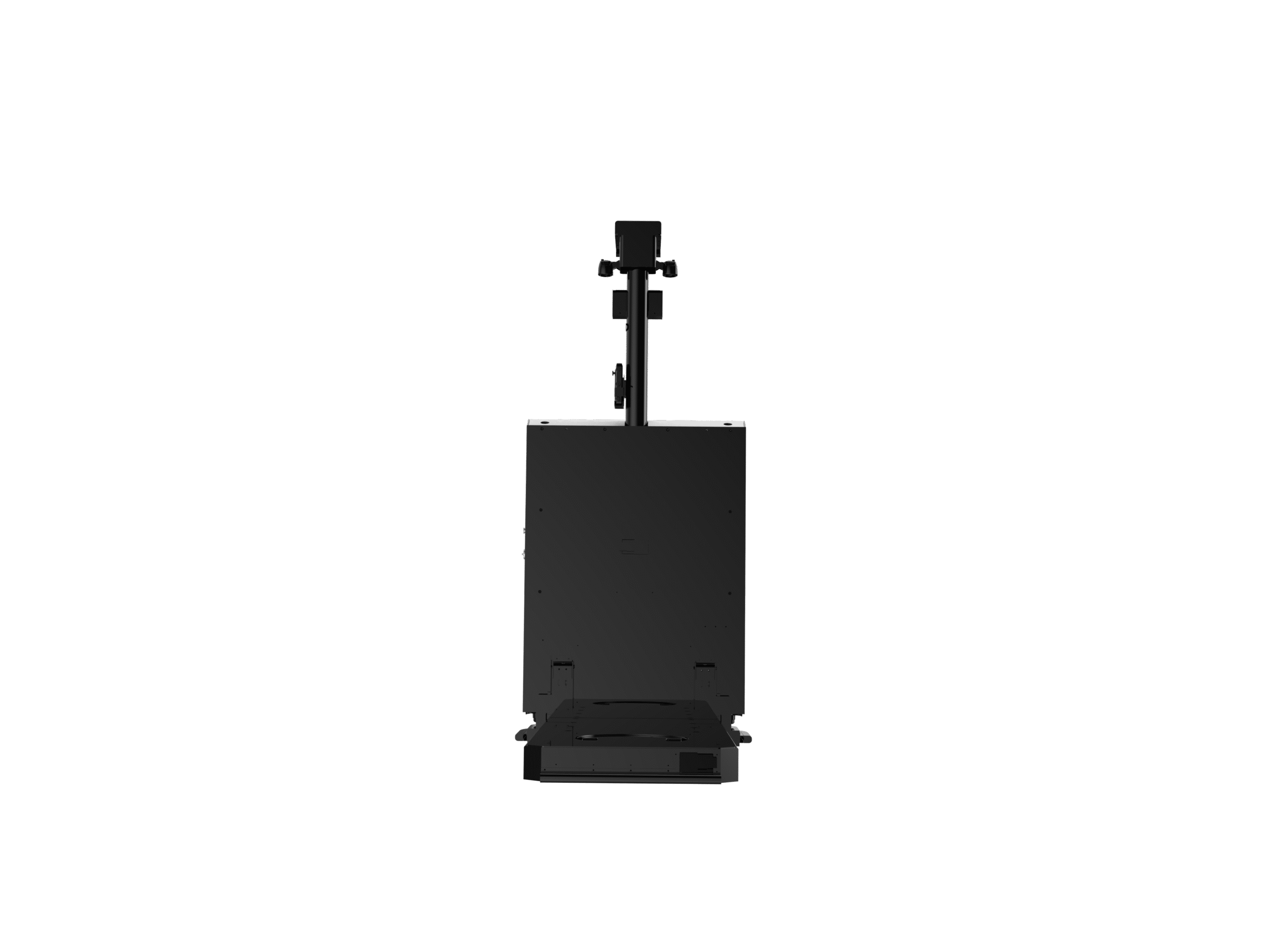

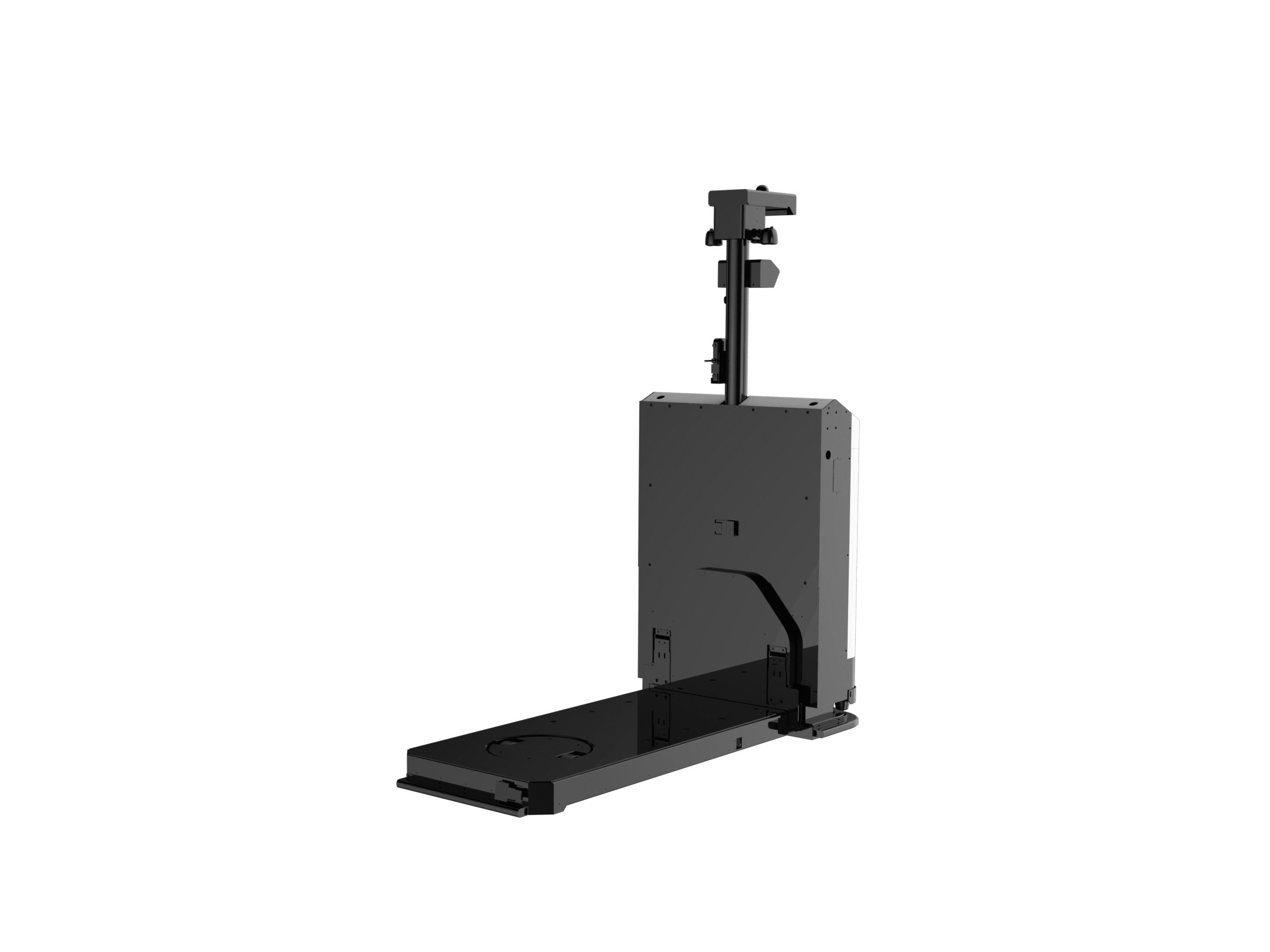

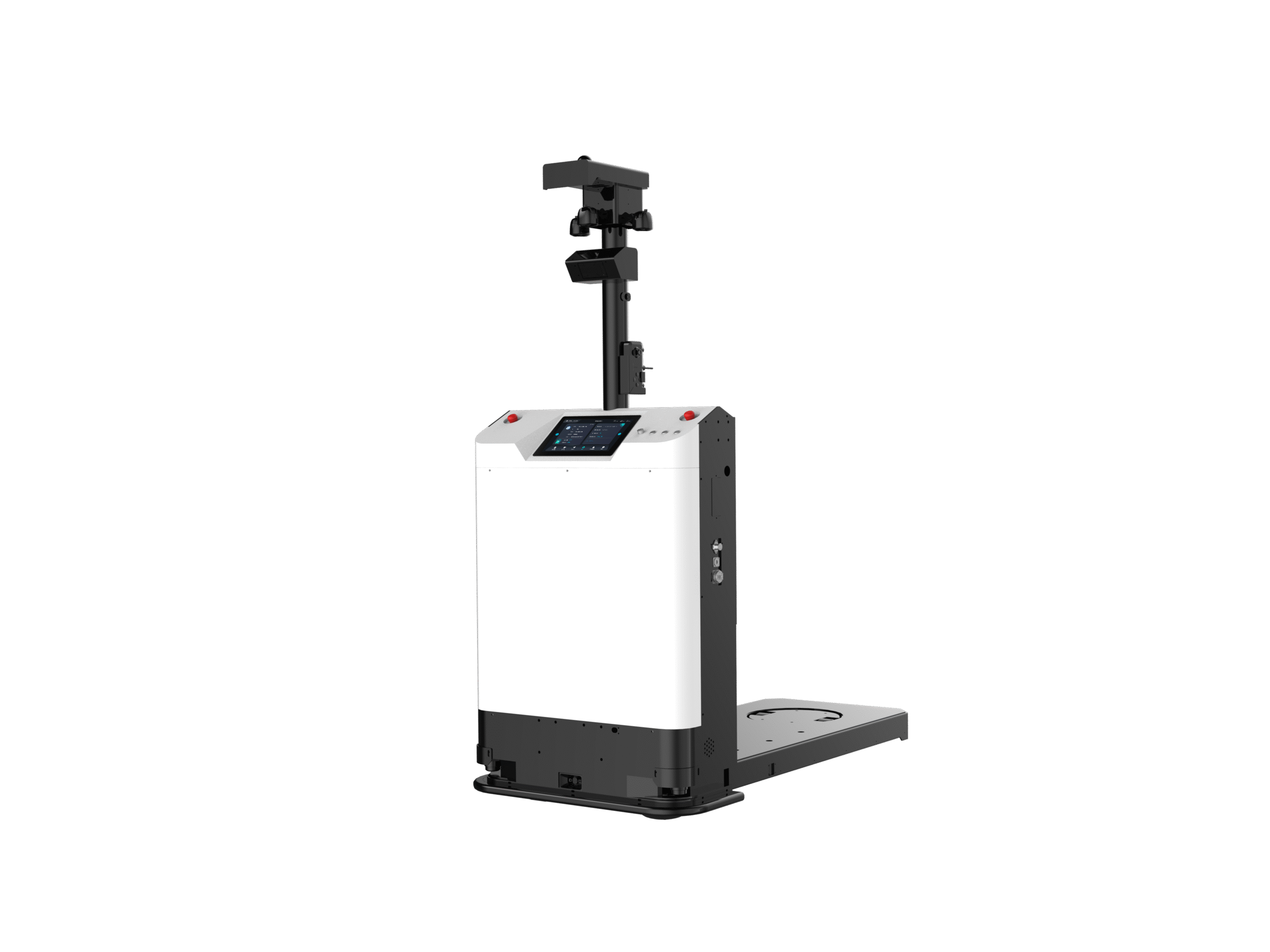

VMR-FL4800P
Intelligent Unmanned Forklift
This intelligent unmanned forklift adopts 3D laser SLAM for accurate positioning in complicated scenes. It runs at max 2 m/s speed with 0.6 m/s² acceleration to boost warehouse handling efficiency. Built with self-developed core modules for stable and reliable operation, it adds 3D vision to identify low and hanging barriers. Omnidirectional travel and 360° steering enable flexible transit inside narrow warehouse aisles.
Rated Load: Max 800kg
Lifting Height: 120-200mm
Description of Design
- Autonomous Item searching: Utilizes high-precision visual algorithms to intelligently locate pallets and adjust fork direction, even when pallets are irregularly or disorderly placed.
- Automatic Transport: Based on mapping and positioning using natural environmental features, it can navigate and plan routes autonomously without the need for tracks or landmarks.
- Safety and Reliability: Multi-level safety measures including 3D vision, Lidar, emergency stop button, and collision bars provide 360° omni directional stereoscopic safety protection.
- Autonomous Charging: Equipped with autonomous charging capabilities, it charges itself when the battery is low or completes charging at specified times.
Application industry
- This cage cart handling forklift robot is applicable to new energy, automobile manufacturing, 3C electronics factories and warehousing logistics workshops to complete full-process unmanned operations including cross-regional transfer of cage cart materials, production line feeding and warehouse inbound & outbound handling.
- Multi-shift, 24/7 Operation.

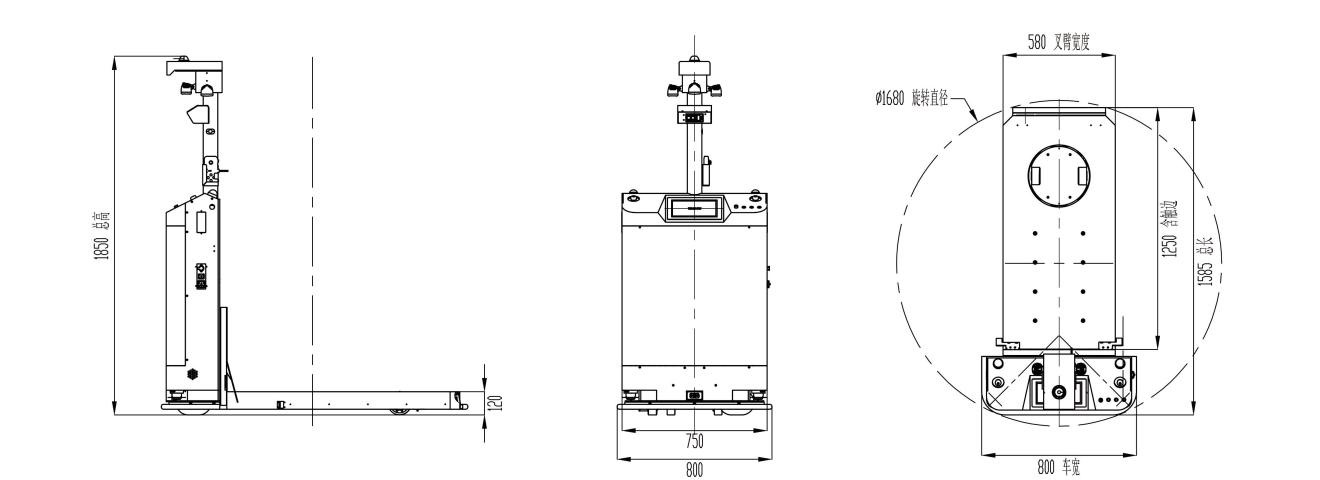

Product three-views drawing
Technical parameter
| Product Model | VMR-FL4800P | |
|---|---|---|
| Basics | Dimensions | 1575L*800W*1850H mm |
| Net Weight | 400kg | |
| Rotating Diameter | Φ1800mm | |
| Capabilities | Rated Load | 800KG |
| Lifting Height | 120-200 mm (lifting travel 80mm) | |
| Load Center Distance | 600 mm | |
| Fork Size | 1250L*580W mm | |
| Fork Outer Width | 580 mm | |
| Safety | Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop | |
| Laser Obstacle Avoidance | Dual front lasers, rear obstacle avoidance camera, 360° full coverage | |
| Safety Edge | Front half protection | |
| E-Stop Button | The reachable range of a single hand around the robot | |
| Audio-Visual Alarm | Light indication+ Audio prompt | |
| Safety | Vision Obstacle Avoidance | Support |
| Motion | Driving Mode | Omnidirectional Chassis |
| Navigation Mode | Natural navigation, vision/laser SLAM | |
| Driving Direction | Forward, backward, rotate, left / right turn, Lateral Movement | |
| Speed | 0~2 m/s | |
| Navigation Docking Accuracy | ±10 mm | |
| Stop Angle Accuracy | ±1° | |
| Battery | Battery Type | LFP 48V 67AH |
| Battery Life | >8 h | |
| Charge Mode | Automatic/manual charging | |
| Charge Time | ≤2 h | |
| Life Cycle | 1500 cycles | |
| HMI | LCD Panel | 7 inches |
| Light Indication | Robot status, fault alarm, battery power, etc | |
| Sound Prompt | Turning, warning, music playback, etc. | |
| Button Operation | E-stop button, power switch button, operation button | |
| Environment | Temperature & Humidity | 0~40℃/10~90%RH, No condensation |
| Ground Slope | ≤ 5% (no-load) / 3% (full load) | |
| Network Communication | WIFI/IEEE 802.11a/b/g/n/ac/ax, 5G (optional) | |
| Components | Automatic Charging Station | VMR-ACE4840C/900600133 |
| Handheld Charger | KP600A/100600804+100801746 | |
