RYSR-MB3311K

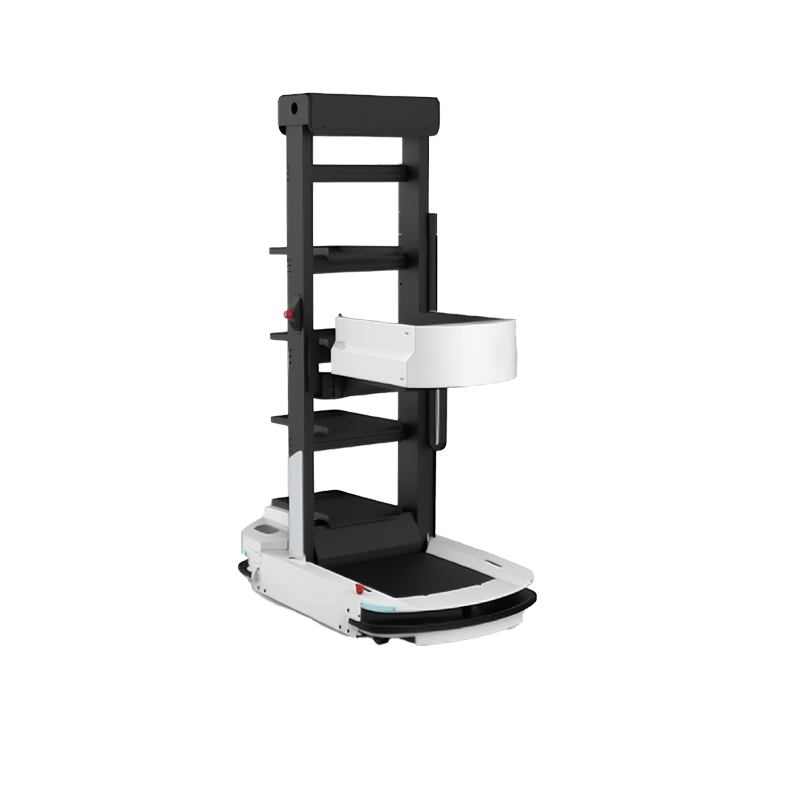

High-level Loading & Unloading AGV Robot
This high-lifting stacking AGV is supported by 3D vision recognition, the device intelligently aligns goods, then completes automatic picking and placing of boxes, pallets and material bins to finish loading and unloading operations.
Rated Load: 30-50kg(Customizable)
Description of Design
Adopting 3D laser SLAM & QR code hybrid navigation, it can be deployed rapidly without tracks. Built-in self-developed control modules support auto-charging, enabling round-the-clock unmanned operation. 3D vision all-round obstacle avoidance and physical anti-collision structure guarantee safe human-machine collaboration in narrow aisles.
Application industry
- Widely applied in 3C electronics, new energy, auto parts, e-commerce, food & pharmaceutical warehouses for automated high-position material handling.
- Realize smart logistics in factories and goods-to-person picking in warehousing centers.
- Multi-shift operation, 24-hour non-stop running.
Product three-views drawing
Technical parameter
| Product Model | RYSR-MB3311K | |
|---|---|---|
| Basics | Dimensions(L*W*H) | 1830L*1060W*2090H mm (Customizable) |
| Net Weight | 550kg | |
| Rotation Diameter | 1830mm | |
| Capacities | Max. total Load | 120 kg (Customizable up to 300KG) |
| Max.Load of single Load | 30/50kg | |
| No.of Load positions | 3 (Max.8) | |
| Box Size | (670~300)*(500~300) mm | |
| Pick-up Height | Min. 400mm, Max.2800mm (Customizable up to 6500mm) | |
| Safety | Protective Measures | Three-level protection: deceleration,gradual stop,emergency stop |
| Laser Obstacle Avoidance | 360° coverage | |
| Safety Edge | Front half– pack protection | |
| E–stop Button | Front/Back/Left/Right | |
| Anti-static Function | Optional | |
| Audio-Visual Alarm | Light indication+ Audio prompt | |
| Motion | Navigation Mode | Two-wheeled differential drive |
| Drive Mode | Natural Navigation | |
| Driving Direction | Forward, backward, rotate, left / right turn | |
| Max. Speed | 1.8m/s | |
| Acceleration of Chassis | 0.4m/s | |
| Lifting&lowering speed | 0.5m/s | |
| Pickup Method | Rotating gripper + extending +2D vision | |
| Container types | Tote, box, case,carton, etc | |
| Ave. Pickup Time | <8s | |
| Battery | Battery Type | LFP |
| Battery Capacity | 48V 35Ah | |
| Charging Method | Automatic / Manual charging | |
| Charging Time | ≤1.5h | |
| Battery Life | ≥5.4h | |
| Life Cycle | 1500 Cycles | |
| HMI | Light Indication | Body status,fault alam, battery power, etc. |
| Sound Prompt | Turning, warning,music playback, etc | |
| Button Operation | E-stop button,power switch button,operation button | |
| Expansion Interface | RJ45 (100MB) | |
| Environment | Application Scenarios | Indoor |
| Temperature | 0~40℃ | |
| Humidity | 10~90%RH, no condensation | |
| Air | No dust, no flammable, explosive or corrosive gases | |
