RMR-FR30500L

This intelligent logistics Latent AGV robot focuses on efficient and flexible material handling capabilities: Leveraging laser SLAM autonomous navigation, it can be deployed conveniently without on-site modifications. Based on a standard chassis, it can quickly integrate modules such as rollers and backpacks to adapt to customized needs across multiple scenarios. Its self-developed main control system features high integration and strong stability, and when paired with functions like scheduled charging and low-battery return-to-charge, it ensures continuous operation to boost efficiency and output.

Rated Load: 50kg/100kg

Lifting Height: 400mm

Download

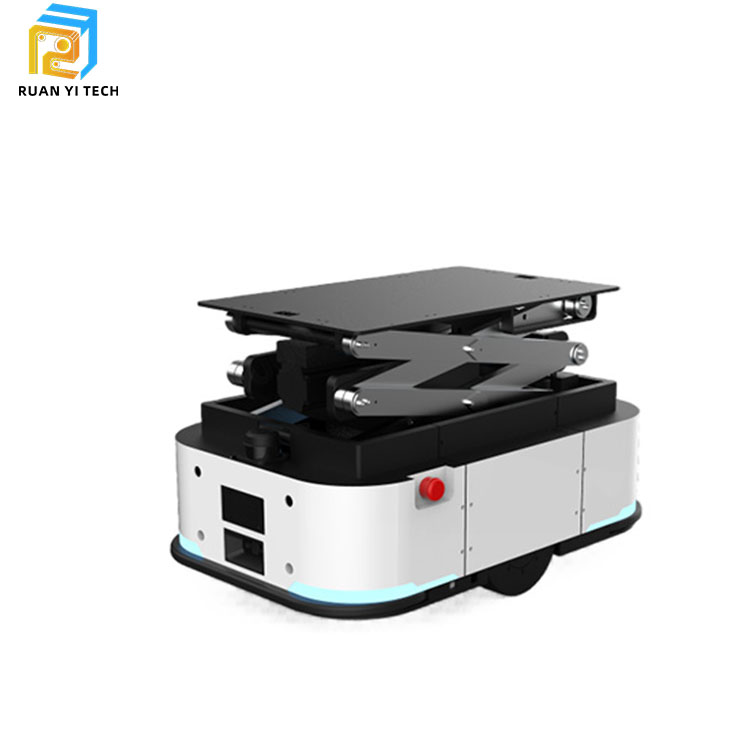

RMR-FR30500L-3
RMR-FR30500L-4

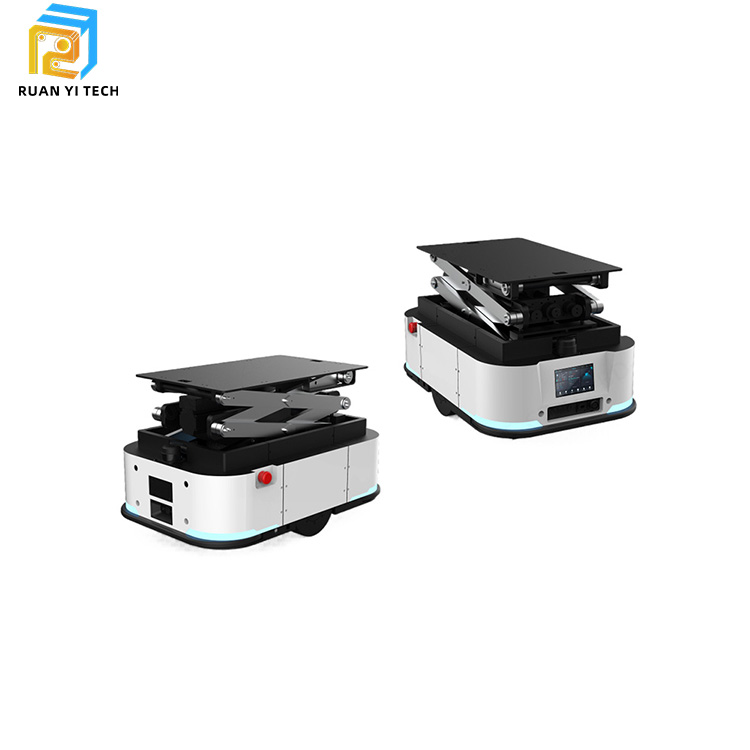

RMR-FR30500L-5

Description of Design

Product Advantages

    • Convenient Deployment: Adopts laser SLAM for autonomous positioning and navigation, no markers or on-site modifications required, making deployment more convenient.
    • Flexible Customization: Can integrate various business units (such as rollers, backpacks) based on standard chassis modules to enable rapid customization.
    • Self-developed Core: Uses self-developed main control and business modules with high integration and excellent stability.
    • Efficiency & Output Improvement: Supports multiple autonomous charging methods, including scheduled fixed-point charging and low-battery return-to-charge.
    • Full-domain Application: Connects and interacts with systems (e.g., doors, elevators) in the application environment via physical or network links to enable cross-regional use.
    • Efficient Transportation: High-speed chassis and long-stroke lifting for strong adaptability.



Application industry

  • Provides flexible material transfer and loading/unloading for manufacturing factories.
  • Suitable for material and equipment handling in 3C, semiconductor, photovoltaic, pharmaceutical and other industries.
  • Suitable for high-speed bin transfer in smart warehousing systems in collaboration with CTU.
  • Multi-shift operation, 24 hours a day.

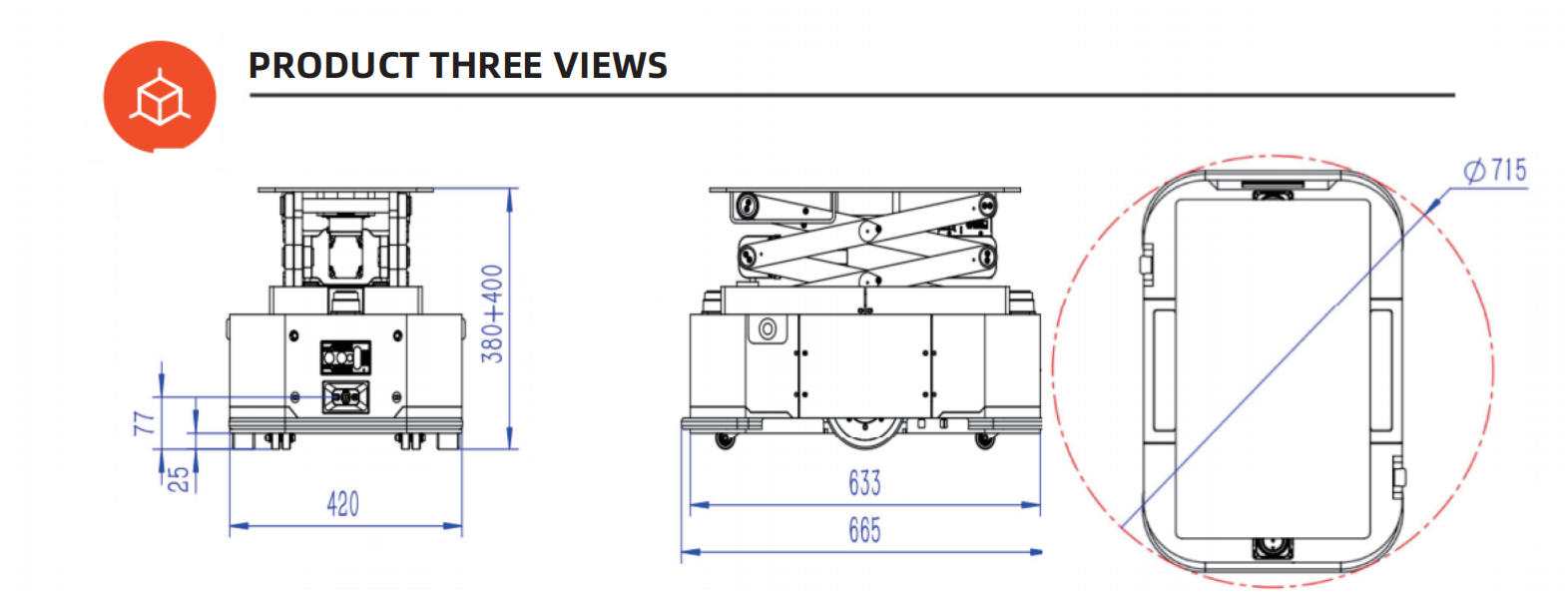

Product three-views drawing

Technical parameter

LATENT HANDLING ROBOT RMR-FR30500L


Basic Parameters

 Overall dimensions 665L*420W*380H mm
Self-weight of the body 90 kg
Rotating diameter Φ715 mm


Business Capability

 Lifting height 400 mm
Lifting load 50 kg Or 100kg
Traction load not supported
Goods order vehicle transfer not supported




Safety Protection

 Protection scope There are no blind spots in the forward navigation direction, including the body and the carrying rack
Protective measures Three-level collision prevention: deceleration, slow stop, emergency braking
Laser obstacle avoidance Front laser (180°/360° laser (optional))
Stopping obstacles at the edge Dual laser (optional)
Emergency stop button Operable with one hand’s reach around the body
audio-visual alarm Light indication + voice prompt
visual obstacle avoidance 3D Vision (optional)


Sport Performance

 Drive Type Differential drive
Navigation method Natural navigation+QR code navigation
walking style Forward and backward, rotating in place, turning left and right
walking speed 0-2.0m/s
navigation accuracy ±10mm
Docking accuracy ±5mm




Endurance

 Battery Type Lithium iron phosphate
Battery Specifications 48V 12Ah
Battery life ≥8h
Charging method Self-charging+manual charging
Charging time ≤1.5h
Battery life 2000 cycles




Human-computer Interaction

 LCD (Liquid Crystal Display) optional
Light indication Including indicators such as status, fault alarms, battery level, etc
Sound prompt Including steering, alarm prompt, music playback and other prompts
Button operation Emergency stop button, power button, operation button
Extended interface RJ45 100Mbps




Application Environment

 Application scenarios Indoor
Ambient temperature 0-40℃
Ambient humidity 10-90%RH, No condensation
Road gradient ≤5%
Gap width ≤20mm
Air environment No dust, flammable, explosive, or corrosive gases
Network communication WIFI(IEEE802.11 a/b/g/n/ac) Support seamless roaming switching for the entire network, 5G optional for the entire network
5G network optional
