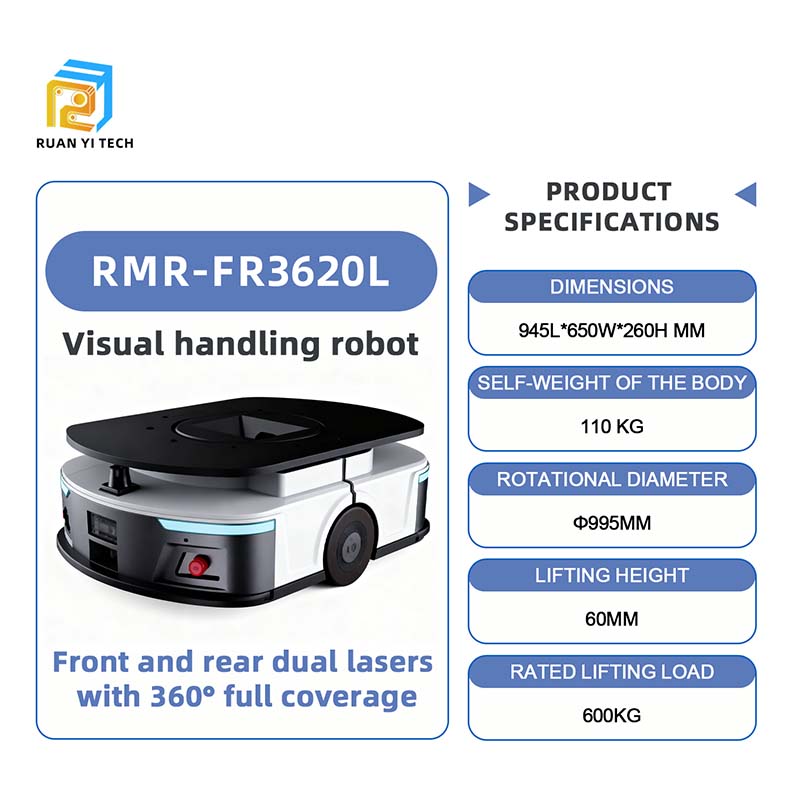

RMR-FR3620L
The Visual Handling Robot (RMR–FR3620L) integrates RuanYi Technology’s RY-MRDVS depth vision tech, enabling obstacle avoidance around low/suspended obstacles or potholes. This boosts 3D environmental perception for safer operations and supports flexible logistics in complex settings. Its industrial design features a friendly, ultra-thin, rounded-edge form to reduce air resistance and ensure user safety. The self-developed core controller adapts to multiple navigation modes and communication interfaces, ensuring orderly, efficient internal operation.
Rated Load: 600kg
Lifting Height: 60mm
Description of Design
Application industry
— Applied in 3C, new energy, automobile, railway chemical industry, construction machinery, e-commerce/retail, food and medicine, packaging and many other fields.
– To realize “intelligent logistics” and “goods on arrival” in the factory
– Multi-shift operation, 24 hours a day.

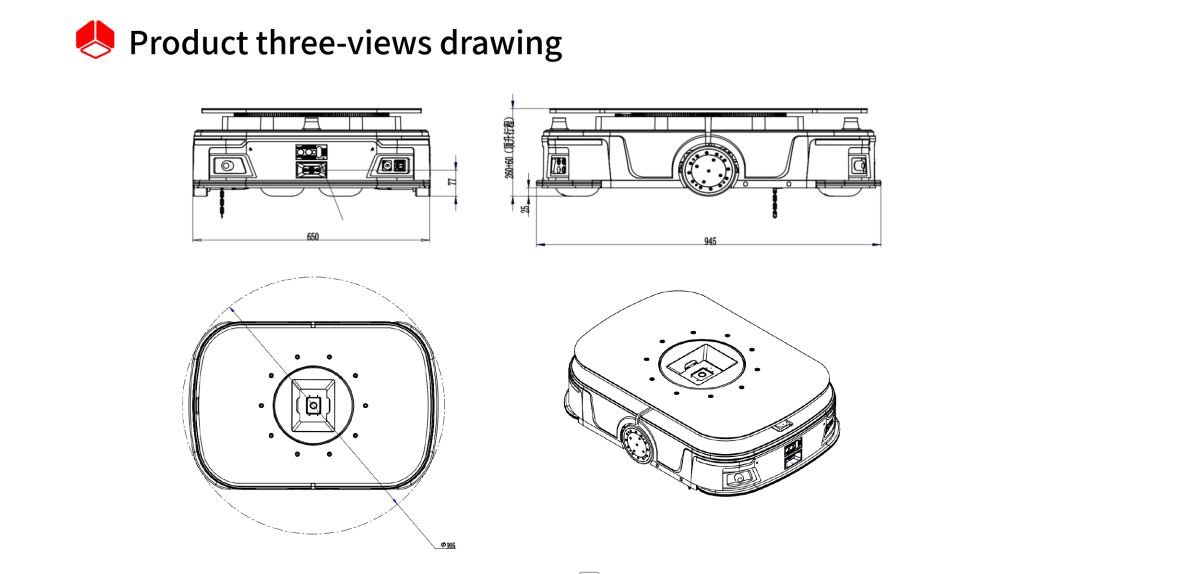

Product three-views drawing
Technical parameter
| Product model | RMR-FR3620L | ||
|---|---|---|---|
| Basic parameters | Overall dimensions | 945L*650W*260H mm | |
| Body dead weight | 110 kg | ||
| Rotating diameter | Φ995 mm | ||
| Operating capability | Lifting height | 60 mm | |
| Lifting rated load | 600 kg | ||
| Cargo fixing and vehicle rotating | Standard | ||
| Safety protection | Scope of protection | 360° omni-directional without blind angle, including body and carrying shelf | |
| Protective measures | Three-level collision avoidance: Deceleration, slow stop and emergency brake | ||
| Laser obstacle avoidance | Full coverage of front and rear double lasers at 360° | ||
| Safety edge stop | All-round protection | ||
| Emergency stop button | Can be operated with a one-handed reach around the body | ||
| Audible and visible alarm | Light indication + voice prompt | ||
| Visual obstacle avoidance | Support matching:≥ 60mm | ||
| Movement performance | Driving mode | Two-wheel differential | |
| Navigation mode | Hybrid navigation: Dual laser SLAM + QR code | ||
| Walking mode | Back and forth two-way, in-situ rotation, left and right turning | ||
| Walking speed | 0~2.0m/s | ||
| Navigation accuracy | ± 10mm | ||
| Docking accuracy | ± 5mm | ||
| Battery strength | Battery type | Lithium iron phosphate | |
| Battery specification | 48V 27Ah | ||
| Battery life | ≥8h | ||
| Charge mode | Autonomous charging + manual charging | ||
| Charge time | ≤1.5h | ||
| Battery cycle life | 2,000 cycles | ||
| Man-machine interaction | Light indication | Including body status, fault alarm, battery power and other indicators | |
| Sound prompt | Including steering, alarm prompt, playing of music and other prompts | ||
| Button operation | Power/Start/Pause/Reset/Auto/Manual | ||
| Expansion port | RJ45/100M | ||
| Application environment | Application environment | Indoor | |
| Ambient temperature | 0~40°C | ||
| Ambient humidity | 10-90% RH, no condensation | ||
| Pavement gradient | ≤5%/3° | ||
| Gap width | ≤20mm | ||
| Step height | ≤10mm | ||
| Air environment | Free of dust, flammable, explosive and corrosive gases | ||
| Network communication | Communication mode | WIFI(IEEE 802.11 a/b/g/n/ac), 4G LTE, 5G | |
