RMR-FR31010L

The Visual Handling Robot (RMR-FR31010L) integrates RuanYi’s RY-MRDVS depth vision tech, enabling obstacle avoidance around low/suspended obstacles or potholes. This boosts 3D perception for safer operations and flexible logistics in complex settings. Its industrial design features a friendly, ultra-thin, rounded-edge form to reduce air resistance and ensure safety. The self-developed core controller supports multiple navigation modes and communication interfaces, ensuring orderly, efficient internal operation.

Rated Load: 1000kg

Lifting Height: 60mm

Download

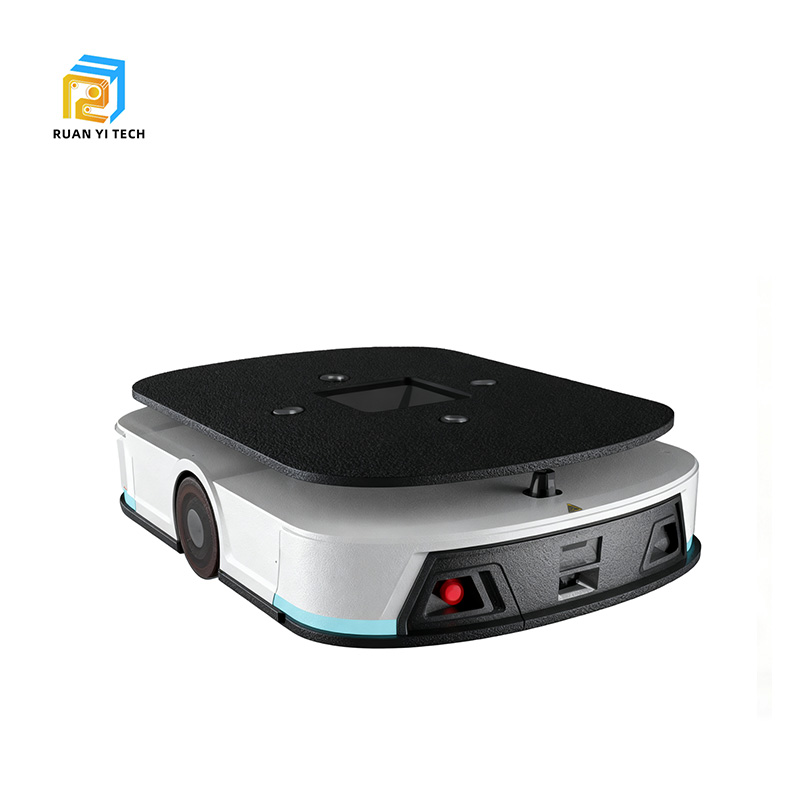

31010-1
31010-2

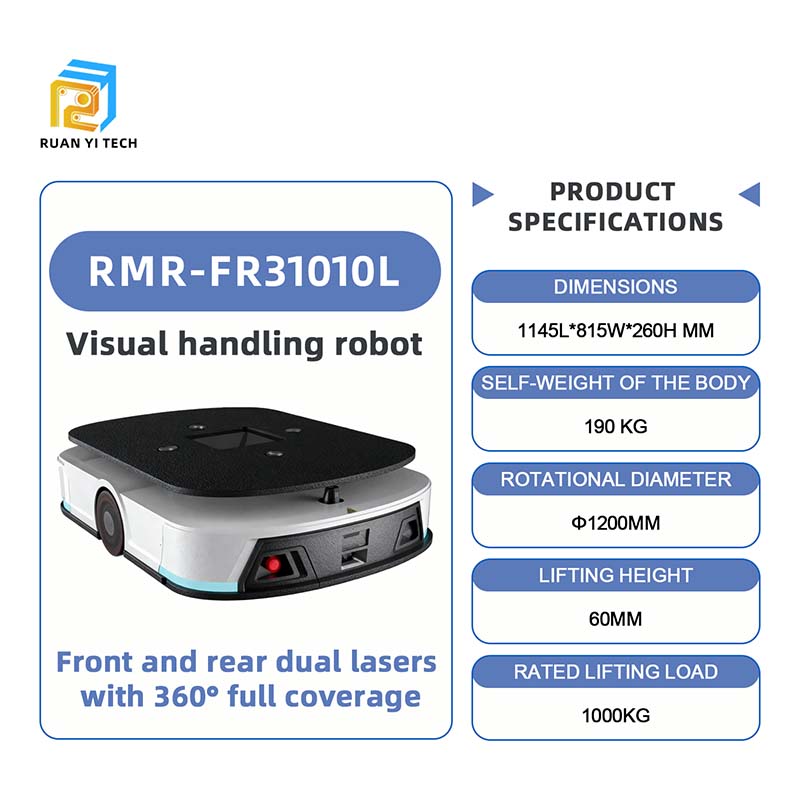

31010-3

Description of Design

The Visual Handling Robot (RMR-FR31010L) integrates RuanYi Technology’s RY-MRDVS depth vision technology. Enabled by deep vision, it can avoid and navigate around low, suspended obstacles, or potholes. This enhances its 3D environmental perception, greatly improving operational safety while enabling flexible logistics and applications in complex environments.
In industrial design, it departs from the cold, rigid form of traditional logistics robots. With a user-friendly assembly-line inspired appearance and ultra-thin body, it reduces air resistance during movement. Moreover, sharp corners or edges are eliminated to ensure user safety.
Additionally, its self-developed core controller module supports multiple navigation modes and integrates various communication interfaces. This ensures simplified, safe internal wiring and orderly, efficient internal operation.

Application industry

— Applied in 3C, new energy, automobile, railway chemical industry, construction machinery, e-commerce/retail, food and medicine, packaging and many other fields.
– To realize “intelligent logistics” and “goods on arrival” in the factory
– Multi-shift operation, 24 hours a day.

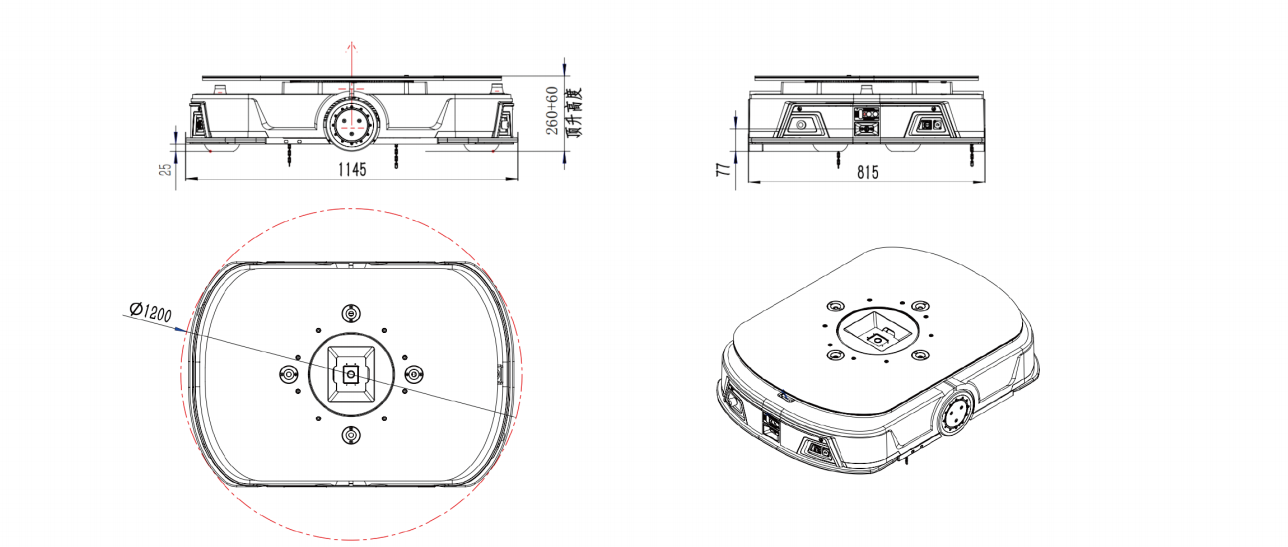

Product three-views drawing

Technical parameter

Product model RMR-FR3400L
Basic parameters Overall dimensions 1145L*815W*260H mm
Body dead weight 190 kg
Rotating diameter ∅1200 mm
Operating capability Lifting height 60 mm
Lifting rated load 1000 kg
Cargo fixing and vehicle rotating Standard
Safety protection Scope of protection 360° omni-directional without blind angle, including body and carrying shelf
Protective measures Three-level collision avoidance: Deceleration, slow stop and emergency brake
Laser obstacle avoidance Full coverage of front and rear double lasers at 360°
Safety edge stop All-round protection
Emergency stop button Can be operated with a one-handed reach around the body
Audible and visible alarm Light indication + voice prompt
Visual obstacle avoidance Support matching:≥ 60mm
Movement performance Driving mode Two-wheel differential
Navigation mode Hybrid navigation: Dual laser SLAM + QR code
Walking mode Back and forth two-way, in-situ rotation, left and right turning
Walking speed 0~2.0m/s
Navigation accuracy ±10mm
Docking accuracy ±5mm
Battery strength Battery type Lithium iron phosphate
Battery specification 48V 27Ah
Battery life ≥8h
Charge mode Autonomous charging + manual charging
Charge time ≤1.5h
Battery cycle life 2,000 cycles
Man-machine interaction Light indication Including body status, fault alarm, battery power and other indicators
Sound prompt Including steering, alarm prompt, playing of music and other prompts
Button operation Power/Start/Pause/Reset/Auto/Manual
Expansion port RJ45/100MB
Application environment Application environment Indoor
Ambient temperature 0~40°C
Ambient humidity 10-90% RH, no condensation
Pavement gradient ≤5%/ 3°
Gap width ≤20mm
Step height ≤10mm
Air environment Free of dust, flammable, explosive and corrosive gases
Network communication WIFI(IEEE 802.11 a/b/g/n/ac), 4G LTE, 5G
