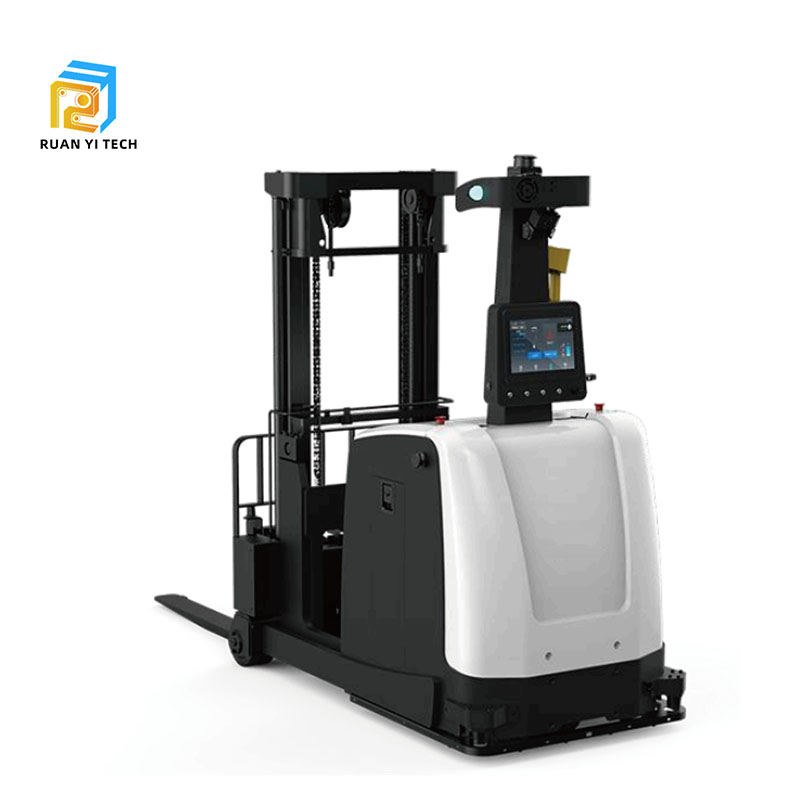

RMR-FL22003C
Intelligent Counterbalanced Forklift
Our intelligent balancing forklift integrates automatic pallet positioning through a high-precision visual algorithm, enabling accurate pallet recognition and fork adjustment even in irregular positions. Its feature is trajectory-free/basis-free autonomous navigation driven by environmental feature mapping, ensuring seamless route planning. Multi-layer protection – 3D vision, lidar, electronic parking mechanism and anti-collision rods – provide 360° all-round protection, offering unparalleled safety and reliability. Equipped with automatic charging, it starts replenishment in low-power mode or at pre-defined intervals. It is compatible with various pallet formats, optimizing receiving, storage, material handling and distribution, providing excellent efficiency, flexibility and cost-effectiveness.
Rated Load: Max 2000kg
Lifting Height: 3000mm(Max 4500mm)
Description of Design
- Autonomous Item searching: Utilizes high-precision visual algorithms to intelligently locate pallets and adjust fork direction, even when pallets are irregularly or disorderly placed.
- Automatic Transport: Based on mapping and positioning using natural environmental features, it can navigate and plan routes autonomously without the need for tracks or landmarks.
- Safety and Reliability: Multi-level safety measures including 3D vision, Lidar, emergency stop button, and collision bars provide 360° omni directional stereoscopic safety protection.
- Autonomous Charging: Equipped with autonomous charging capabilities, it charges itself when the battery is low or completes charging at specified times.
Application industry
- Warehouse：Suitable for operations such as goods receiving dispatching, storage, and picking
- Manufacturing：Enables more efficient handling, loading, unloading, and sorting of materials.
- Logistics：Meets the demands of transportation, storage, and distribution with high efficiency, flexibility, and low cost.
- Multi-shift, 24/7 Operation.

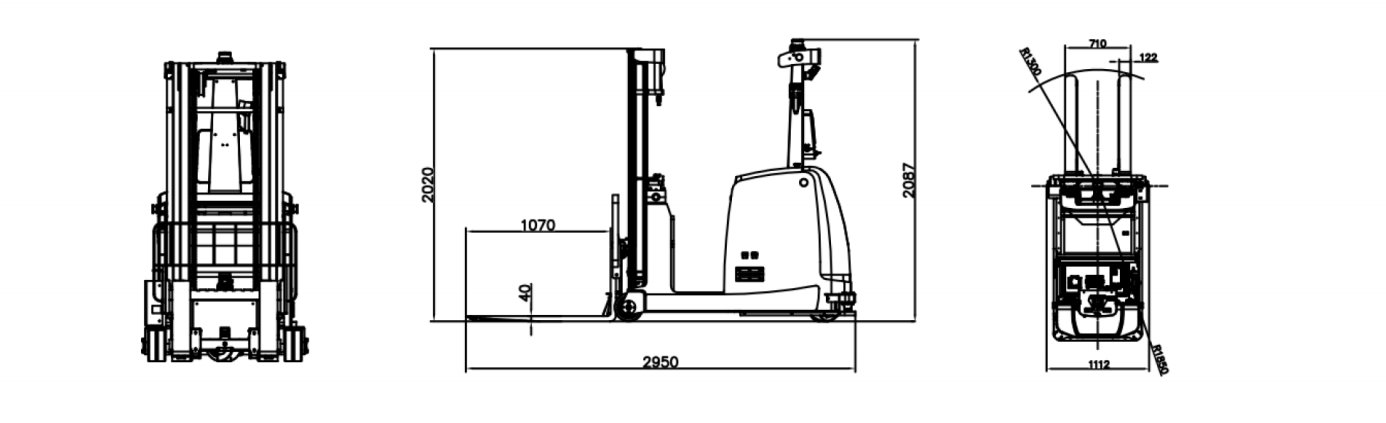

Product three-views drawing

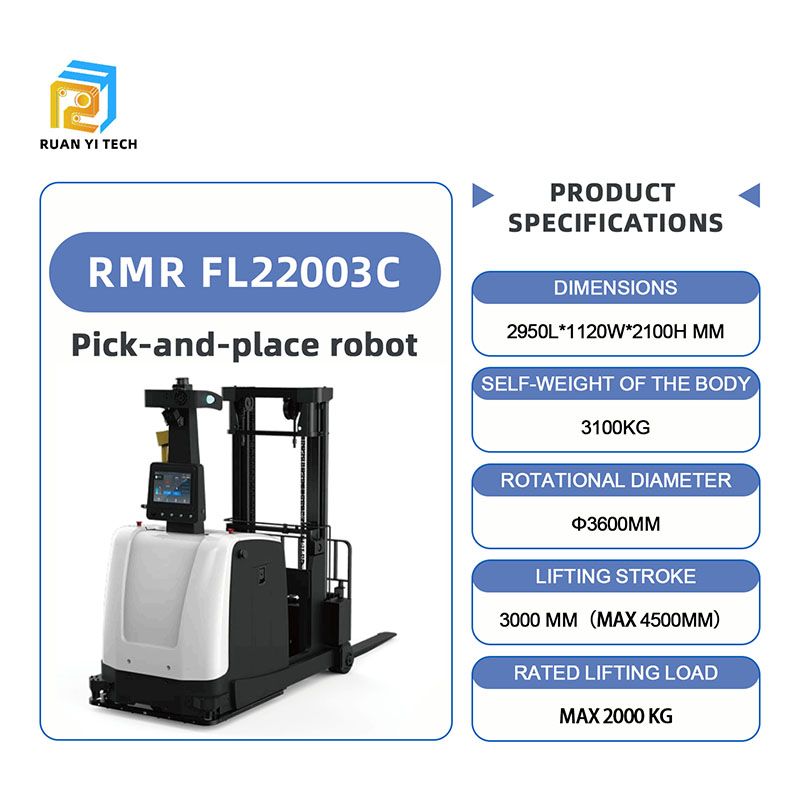

Technical parameter
| Product Model | RMR-FL22003C | |
|---|---|---|
| Basics | Dimensions | 2950L*1120W*2100H mm |
| Net Weight | 3100kg | |
| Rotating Diameter | Φ3600mm | |
| Capabilities | Rated Load | Max 2000 kg |
| Lifting Height | 3000 mm(Max 4500mm) | |
| Load Center Distance | 500 mm | |
| Overall Dimensions(L*W*H) | 1070L*122W*40H mm*2 | |
| Fork Outer Width | 710 mm | |
| Safety | Protective Coverage | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop | |
| Laser Obstacle Avoidance | Front dual laser: full coverage for operation and vehicle sides | |
| Safety Edge | Front half-wrap protection | |
| E-Stop Button | The reachable range of a single hand around the robot | |
| Audio-Visual Alarm | Light indication+Audio prompt | |
| 3D Vision Obstacle Avoidance | Optional | |
| Motion | Driving Mode | Single steering wheel drive |
| Navigation Mode | Natural navigation,Visual laser SLAM(optional) | |
| Driving Direction | Forward, backward, rotate, left / right turn | |
| Speed | 0~1.5 m/s | |
| Navigation Docking Accuracy | ±10 mm | |
| Stop Angle Accuracy | ±1° | |
| Battery | Battery Type | LFP 24V 270AH |
| Battery Life | 6~8 h | |
| Charge Mode | Automatic/manual charging | |
| Charge Time | ≤3 h | |
| Life Cycle | 2000 cycles | |
| HMI | LCD Panel | 10 inches |
| Light Indication | Robot status, fault alarm, battery power, etc | |
| Sound Prompt | Turning, warning, music playback, etc. | |
| Button Operation | E-stop button, power switch button, operation button | |
| Manual Remote Controller | Support | |
| Expansion Interface | RJ45(100MB) | |
| Environment | Temperature & Humidity | 0~40℃/10~90%RH, No condensation |
| Ground Slope | ≤5% (No-load) / 3% (full load) | |
| Network Communication | WIFI/IEEE 802.11a/b/g/n/ac 5G (optional) | |
| Aisle Width for 90° Pallet Pickup | 3600 mm (pallet: 1200*1200) | |
| Ground load-Bearing capacity | ≥2100 kg/m² | |
