RMR-FL21503C

Intelligent Counterbalanced Forklift

It’s an intelligent pioneer in warehouse logistics! With four core advantages—autonomous cargo finding (high-precision visual algorithms for accurate pallet positioning in disorderly scenarios), automatic handling (trackless autonomous mapping and navigation), safety and reliability (multi-level measures for 360° three-dimensional protection), and autonomous charging (automatic power replenishment when low or at scheduled times)—it thoroughly revolutionizes handling modes. It helps enterprises break through efficiency bottlenecks and embark on a new journey of automated and intelligent logistics.

Rated Load: 1500kg

Lifting Height: 3500mm

Download

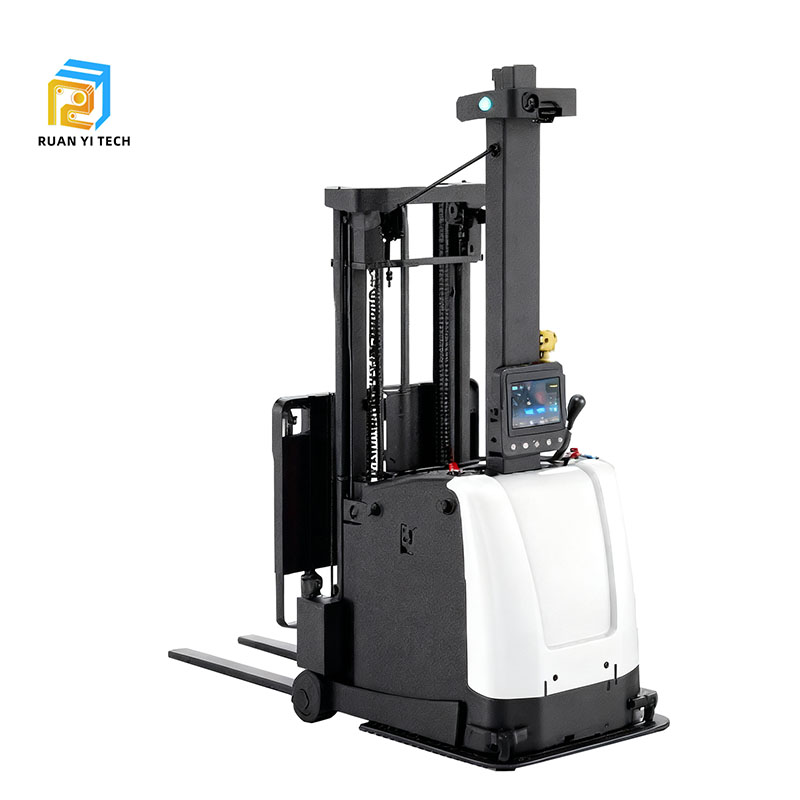

RMR-FL21503C
RMR-FL21503C-1

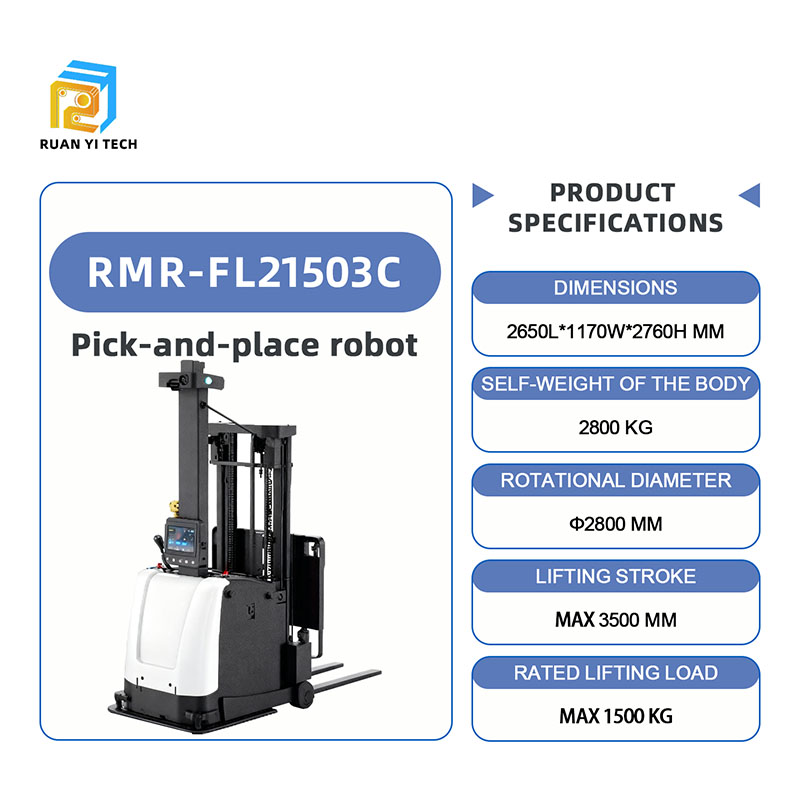

RMR-FL21503C-2

Description of Design

-Autonomous Item searching: Utilizes high-precision visual algorithms to intelligently locate pallets and adjust fork direction, even when pallets are irregularly or disorderly placed.

– Automatic Transport: Based on mapping and positioning using natural environmental features, it can navigate and plan routes autonomously without the need for tracks or landmarks.

– Safety and Reliability: Multi-level safety measures including 3D vision, LiDAR, emergency stop button, and collision bars provide 360° omnidirectional stereoscopic safety protection. – Autonomous Charging: Equipped with autonomous charging capabilities, it charges itself when the battery is low or completes charging at specified times.

Application industry

  • Warehouse：Suitable for operations such as goods receiving dispatching, storage, and picking
  • Manufacturing：Enables more efficient handling, loading, unloading, and sorting of materials.
  • Logistics：Meets the demands of transportation, storage, and distribution with high efficiency, flexibility, and low cost.
  • Multi-shift, 24/7 Operation.

Product three-views drawing

Technical parameter



Product Model RMR-FL21503C
Basics Dimensions 2650L*1170W*2760H mm
Net Weight 2800kg
Rotating Diameter Φ2800mm
     Capabilities Rated Load Max 1500 kg
Lifting Height 3500 mm
Load Center Distance 500 mm
Overall Dimensions(L*W*H) 1245L*100W*40H mm*2
Fork Outer Width 520 mm(Standard)
      Safety Protective Coverage 360° coverage
Protective Measures Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance Front dual laser: full coverage for operation and vehicle sides
Safety Edge Front half-wrap protection
E-Stop Button The reachable range of a single hand around the robot
Audio-Visual Alarm Light indication+Audio prompt
3D Vision Obstacle Avoidance Optional
         Motion Driving Mode Single steering wheel drive
Navigation Mode Natural navigation,Visual laser SLAM(optional)
Driving Direction Forward, backward, rotate, left / right turn
Speed 0~1.5 m/s
Navigation Docking Accuracy ±10 mm
Stop Angle Accuracy ±1°
     Battery Battery Type LFP 24V 230AH
Battery Life 6~8 h
Charge Mode Automatic/manual charging
Charge Time ≤2.5 h
Life Cycle 2000 cycles
      HMI LCD Panel 10 inches
Light Indication Robot status, fault alarm, battery power, etc
Sound Prompt Turning, warning, music playback, etc.
Button Operation E-stop button, power switch button, operation button
Manual Remote Controller Support
Expansion Interface RJ45(100MB)
    Environment Temperature & Humidity 0~40℃/10~90%RH, No condensation
Ground Slope ≤5% (No-load) / 3% (full load)
Network Communication WIFI/IEEE 802.11a/b/g/n/ac 5G (optional)
Aisle Width for 90° Pallet Pickup 3100 mm (pallet: 1200*1200)
