RMR FL21501P

Intelligent Unmanned Forklift

It’s an intelligent pioneer in warehouse logistics! With four core advantages—autonomous cargo finding (high-precision visual algorithms for accurate pallet positioning in disorderly scenarios), automatic handling (trackless autonomous mapping and navigation), safety and reliability (multi-level measures for 360° three-dimensional protection), and autonomous charging (automatic power replenishment when low or at scheduled times)—it thoroughly revolutionizes handling modes. It helps enterprises break through efficiency bottlenecks and embark on a new journey of automated and intelligent logistics.

Rated Load: 1500kg

Lifting Height: 110mm

Download
RMR FL21501P

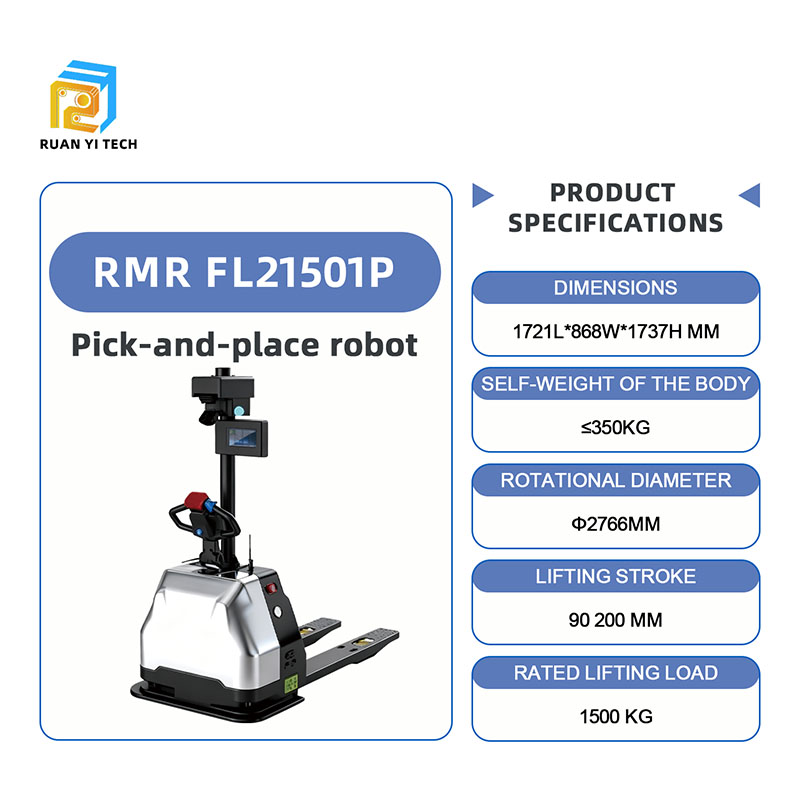

RMR FL21501P-1
RMR FL21501P-2

Description of Design

  • Safety and Reliability: Multi-level safety measures including 3D vision, LiDAR, emergency stop button, and collision bars provide 360° omnidirectional stereoscopic safety protection.
  • Autonomous Item searching: Based on mapping and positioning using natural environmental features, it can navigate and plan routes autonomously without the need for tracks or landmarks.
  • Anthropomorphic navigation: Employs mapping and positioning based on natural environmental features, eliminating the need for tracks or landmarks. Supports both laser and 3D visual SLAM navigation methods.
  • Efficiency and Productivity: Compatible with various pallet carriers, including “Chuan” (stringer pallet), and nine-foot pallets.

Application industry

  • Warehouse：Suitable for operations such as goods receiving dispatching, storage, and picking
  • Manufacturing：Enables more efficient handling, loading, unloading, and sorting of materials.
  • Logistics：Meets the demands of transportation, storage, and distribution with high efficiency, flexibility, and low cost.
  • Multi-shift operation, 24 hours a day.

Product three-views drawing

Technical parameter



Product Model RMR FL21501P
Basics Dimensions 1821L*868W*1768H mm
Net Weight ≤350kg
Rotating Diameter Φ2955mm
Capabilities Rated Load 1500 kg
Lifting Height 110 mm
Load Center Distance 600 mm
Fork Diamensions(L*W*H) 1250L*170W*55H mm
Fork Outer Width 600 mm
Safety Protective Coverage 360° coverage
Protective Measures Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance Front dual laser: full coverage for operation and vehicle sides
Safety Edge Directional surround protection+fork tip mechanical collision detection
E-Stop Button The reachable range of a single hand around the robot
Audio-Visual Alarm Light indication+Audio prompt
3D Vision Obstacle Avoidance Optional
Motion Driving Mode Single steering wheel
Navigation Mode Anthropomorphic navigation:Standard laser SLAM,Optional vision SLAM
Driving Direction Forward, backward, rotate, left / right turn
Speed 0~1.5 m/s
Navigation Docking Accuracy ±10 mm
Stop Angle Accuracy ±1°
Battery Battery Type LFP 24V 100AH
Battery Life 6~8 h
Charge Mode Automatic/manual charging
Charge Time ≤2 h
Life Cycle 2000 cycles
HMI LCD Panel 10 inches
Light Indication Robot status, fault alarm, battery power, etc
Sound Prompt Turning, warning, music playback, etc.
Button Operation E-stop button, power switch button, operation button
Manual Remote Controller Support
Expansion Interface RJ45(100M)
Environment Temperature & Humidity 0~40℃/10~90%RH, No condensation
Ground Slope ≤5% (0-load) / 3% (full load)
Network Communication WIFI/IEEE 802.11a/b/g/n/ac/ax, 5G (optional)
Aisle Width for 90° Pallet Pickup 2340 mm (pallet: 1200*1200)
Aisle Width For Centered Docking 2550 mm (pallet: 1200*1200)
Ground Load-Bearing Capacity ≥1700 kg/㎡
