RMR FL21403S

Smart Stacking Driverless Forklift

It’s an intelligent pioneer in warehouse logistics! With four core advantages—autonomous cargo finding (high-precision visual algorithms for accurate pallet positioning in disorderly scenarios), automatic handling (trackless autonomous mapping and navigation), safety and reliability (multi-level measures for 360° three-dimensional protection), and autonomous charging (automatic power replenishment when low or at scheduled times)—it thoroughly revolutionizes handling modes. It helps enterprises break through efficiency bottlenecks and embark on a new journey of automated and intelligent logistics.

Rated Load: Max1400kg

Lifting Height: 1600mm(Max3500mm)

Download

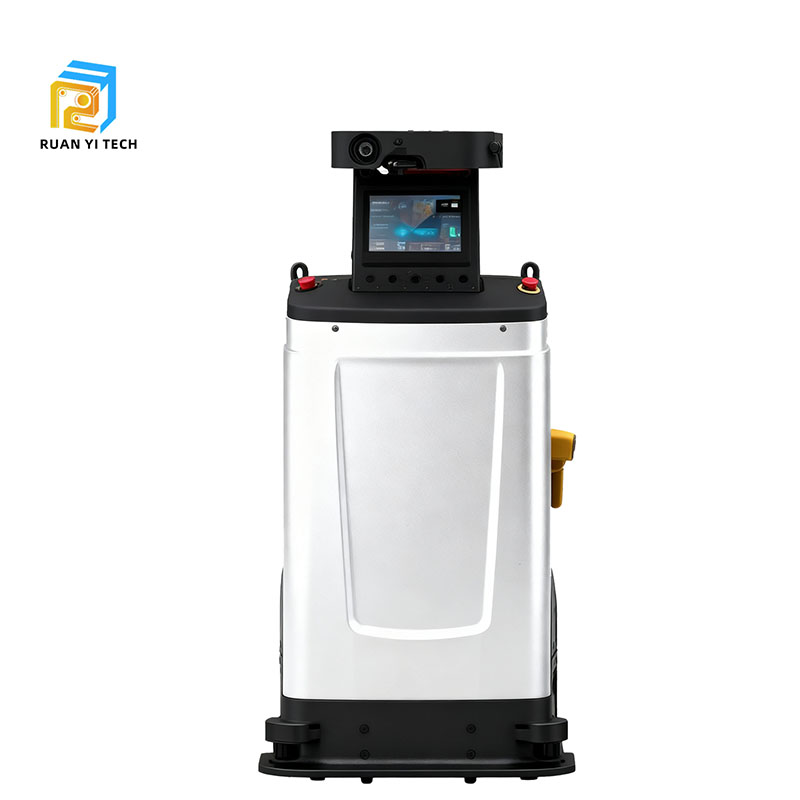

RMR FL21403S
RMR FL21403S-1

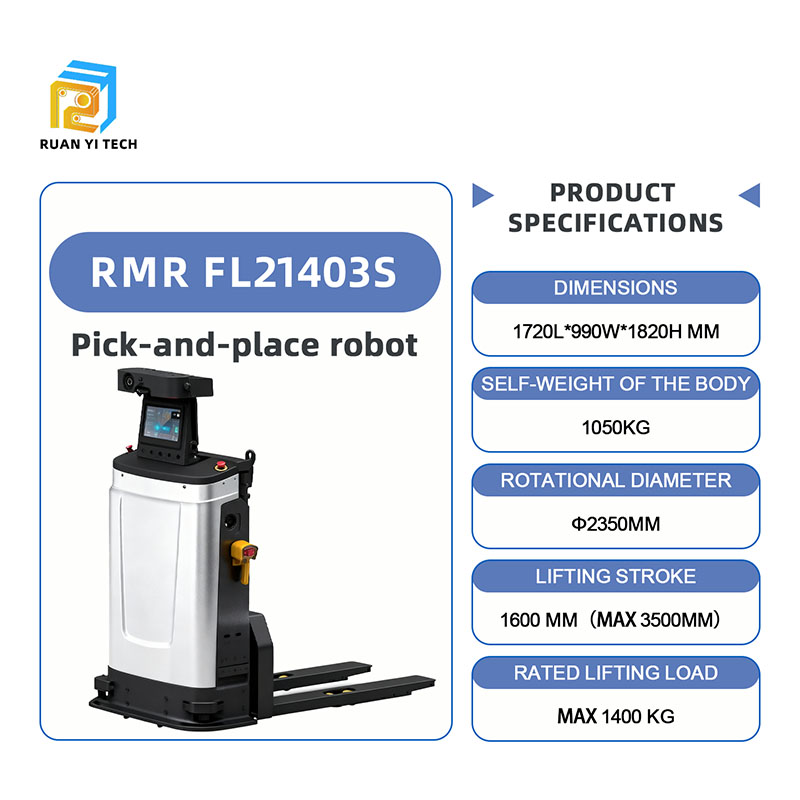

RMR FL21403S-2

Description of Design

  • Autonomous Cargo Finding: Based on high-precision visual algorithms, it can intelligently locate pallets and adjust the fork entry direction when pallets are placed irregularly and disorderly.
  • Automatic Handling: Based on environmental natural feature mapping and positioning, it can realize autonomous positioning, path planning and driving without tracks and landmarks.
  • Safe and Reliable: Multiple-level safety measures such as 3D vision, lidar, emergency stop buttons and collision bars are adopted to achieve 360° omnidirectional regional three-dimensional safety protection.
  • Autonomous Charging: It has the function of autonomous charging, and can charge automatically when the battery is low or complete autonomous charging according to the specified time.

Application industry

— Applied in 3C, new energy, automobile, railway chemical industry, pharmaceutical, tobacco, new energy, electronics, construction machinery, e-commerce/retail, food and medicine, packaging and many other fields. and suitable for e-commerce warehousing and factory warehouses;

–High-frequency loading and unloading with high docking precision;

– Multi-shift operation, 24 hours a day.

Product three-views drawing

Technical parameter



Product Model RMR-FL21403S
            Basics Dimensions 1750L*1120W*1850H mm
Net Weight 1050kg
Rotating Diameter Φ2360mm
     Capabilities Rated Load Max.1400 kg (Ref. Load Curve)
Lifting Height 1600 mm (Max. 3500mm)
Load Center Distance 600 mm
Fork Size 1150L*170W*60H mm * 2
Fork Outer Width 680 mm (Standard)
        Safety Protective Coverage 360° coverage
Protective Measures Three-level protection: deceleration, gradual stop, emergency stop
Laser Obstacle Avoidance 360° full coverage by front & rear three lasers
Safety Edge Front half protection
E-Stop Button The reachable range of a single hand around the robot
Audio-Visual Alarm Light indication+Audio prompt
Vision Obstacle Avoidance Support
Motion Driving Mode Single steering wheel
Navigation Mode Natural navigation, vision/laser SLAM
Driving Direction Forward, backward, rotate, left / right turn
Speed 0~1.5 m/s
Navigation Docking Accuracy ±10 mm
Stop Angle Accuracy ±1°
Battery Battery Type LFP 24V 150AH
Battery Life 6~8 h
Charge Mode Automatic/manual charging
Charge Time ≤2 h
Life Cycle 2000 cycles
HMI LCD Panel 10 inches
Light Indication Robot status, fault alarm, battery power, etc
Sound Prompt Turning, warning, music playback, etc.
Button Operation E-stop button, power switch button, operation button
Manual Remote Controller Support
Expansion Interface RJ45(100M)
Environment Temperature & Humidity 0~40℃/10~90%RH, No condensation
Ground Slope ≤5% (0-load) / 3% (full load)
Network Communication WIFI/IEEE 802.11a/b/g/n/ac/ax, 5G (optional)
Aisle Width for 90° Pallet Pickup 2340 mm (pallet: 1200*1200)
Aisle Width For Centered Docking 2550 mm (pallet: 1200*1200)
Ground Load-Bearing Capacity ≥1700 kg/㎡
